Sample kitchen design package

This is a real example of what 247 Cabinetry delivers: a 17-page design package with photorealistic 3D renderings, a 360° virtual kitchen tour, a dimensioned floor plan with every cabinet SKU, a 3D floor plan and wall-by-wall elevations — ready to present to a homeowner and quote from.

View sample PDF Download PDF (10.1 MB)

What’s in this sample?

The sample is a U-shaped kitchen with a 90-inch island, a column refrigerator wall, a walk-in pantry and a laundry wall, designed in Craftsman Natural Shaker cabinets with a 96-inch ceiling.

  • Renderings — a cover rendering and a 3D perspective view the homeowner can picture themselves in.
  • 360° virtual tour — a panoramic view that opens on any device, with a QR code.
  • Floor plans — a dimensioned 2D plan with cabinet SKUs and notes, plus a rendered 3D plan.
  • Elevations — every wall drawn to scale with heights, widths and cabinet codes.
  • Revision page — space to mark up changes before requesting a revision.

Page by page

Click any page to enlarge it. Use the arrow keys or swipe to move between pages.

Cover rendering & door specification: Photorealistic 3D rendering of a U-shaped kitchen with island in Craftsman Natural Shaker (birch), with the full cabinet construction spec.
Cover rendering & door specificationPage 1
3D perspective rendering: A second photorealistic view showing the sink wall, island seating and natural shaker finish.
3D perspective renderingPage 2

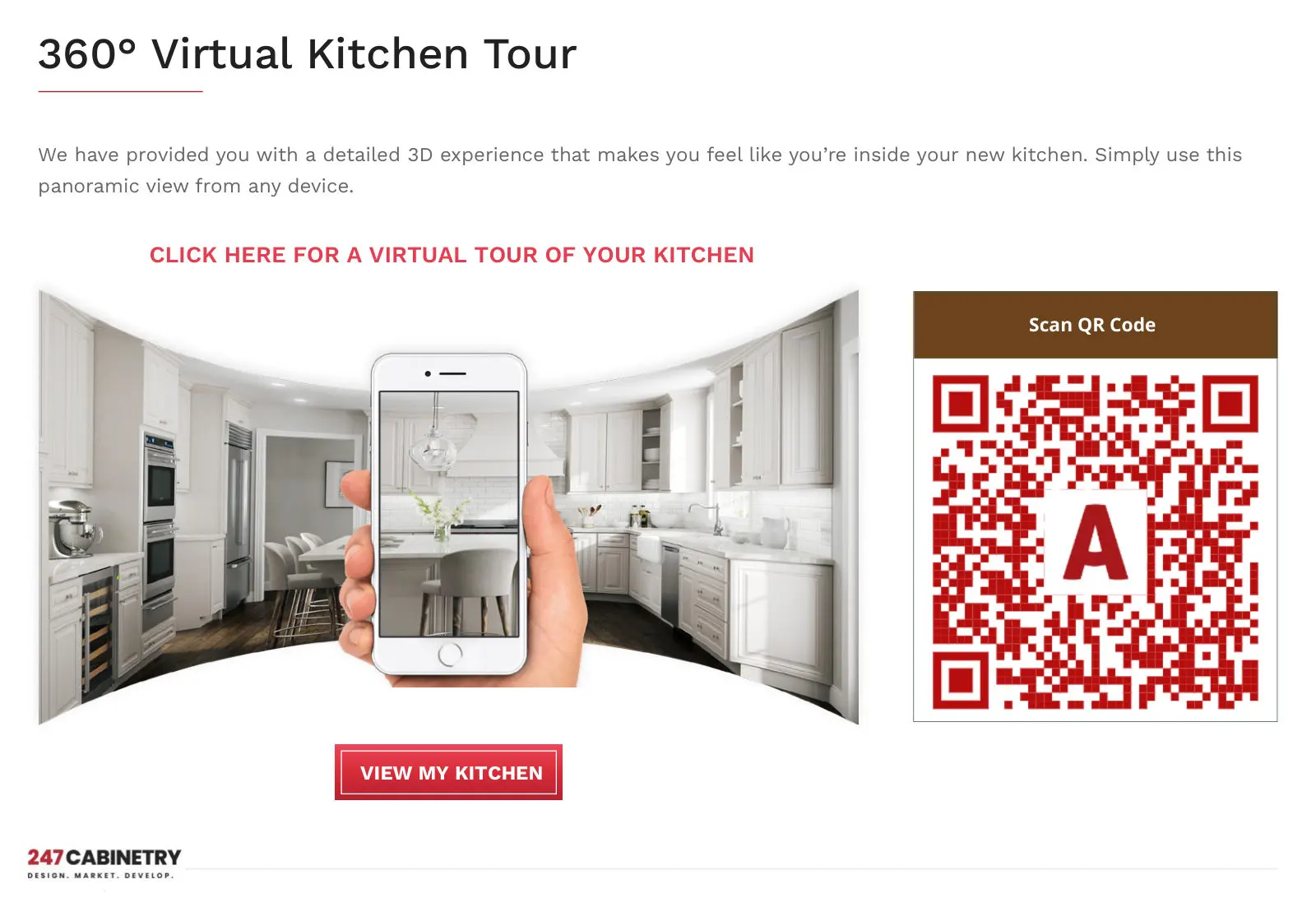

360° virtual kitchen tour: A panoramic tour the homeowner can open on any phone or computer, with a QR code for quick access.
360° virtual kitchen tourPage 3
Dimensioned floor plan: The full floor plan with every wall dimension, cabinet SKU, filler, ceiling height and installation notes.
Dimensioned floor planPage 4

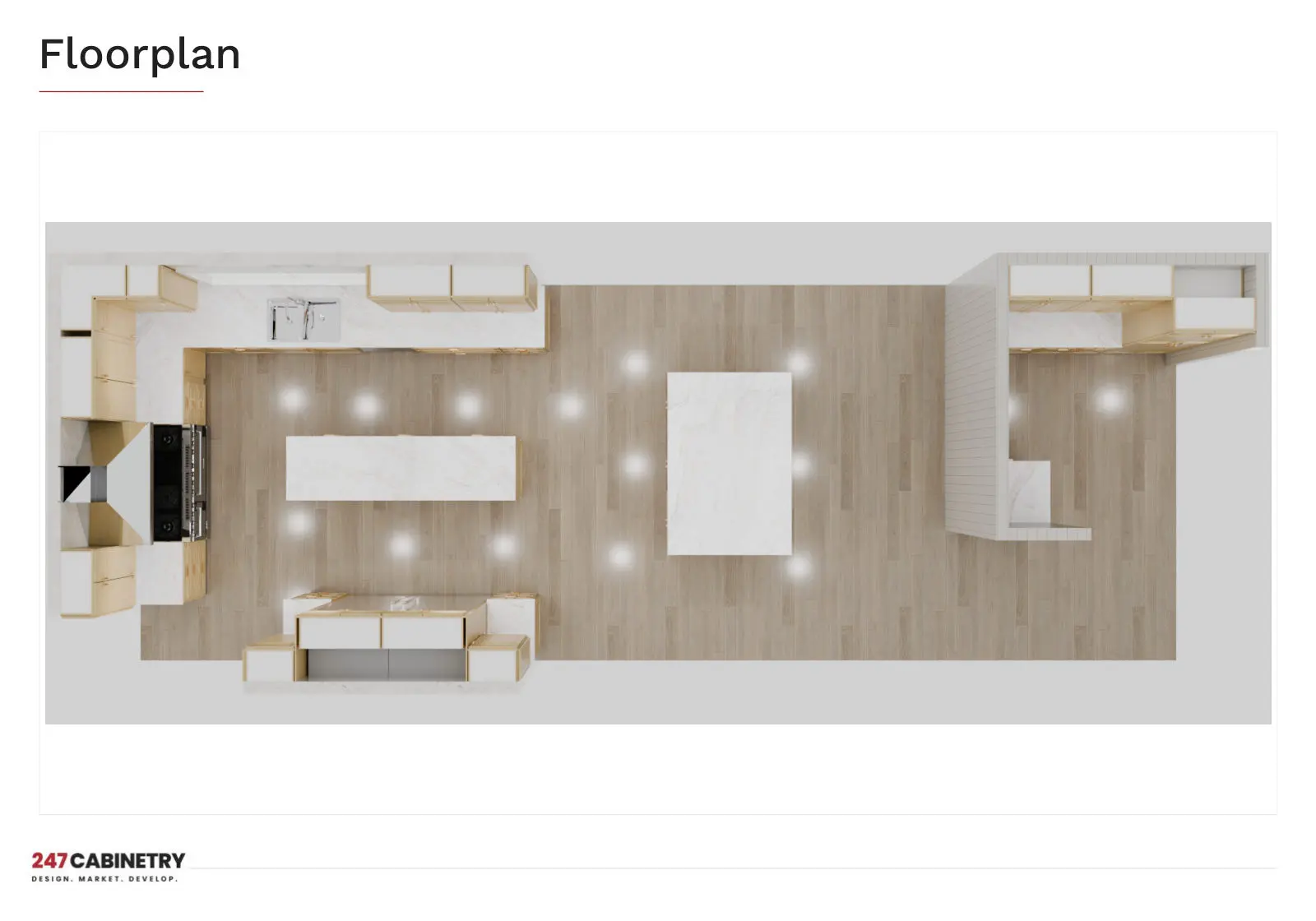

3D floor plan: A rendered top-down view of the kitchen, island, pantry and lighting layout.
3D floor planPage 5

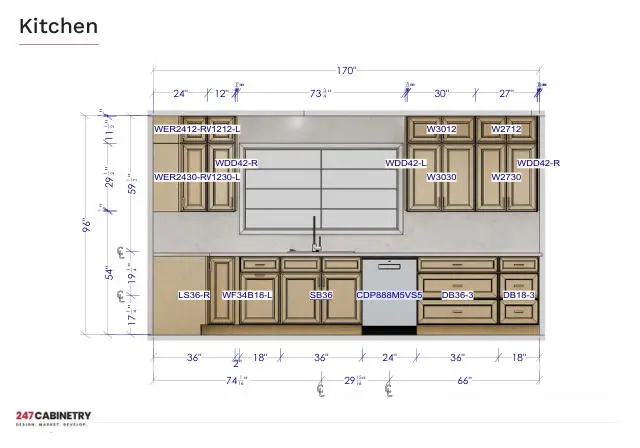

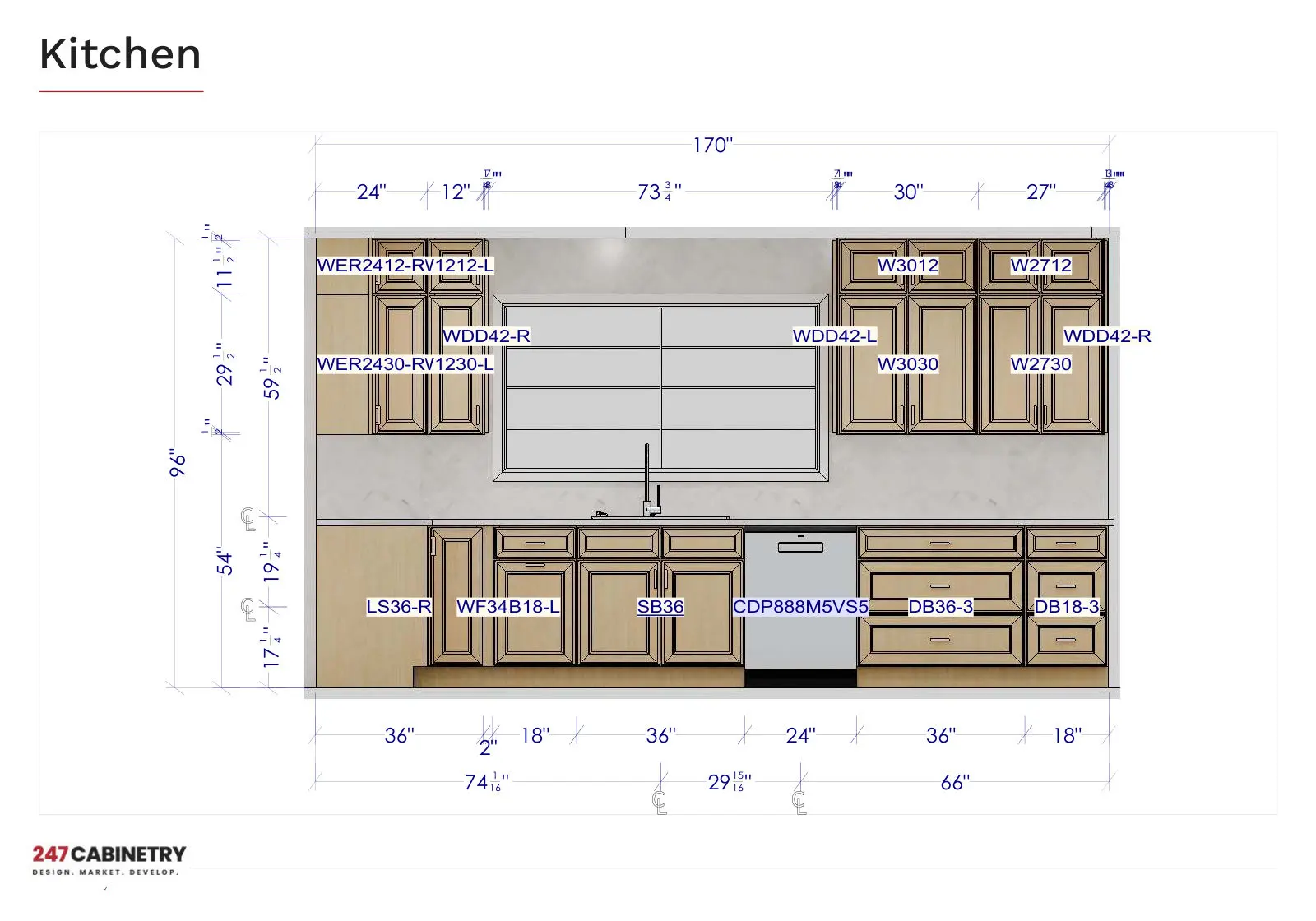

Sink wall elevation: 170-inch sink wall with window, wall cabinets, sink base, dishwasher and drawer bases, fully dimensioned.
Sink wall elevationPage 6
Range wall elevation: 128-inch range wall with 48-inch range, chimney hood, stacked wall cabinets and lazy susan corner.
Range wall elevationPage 7

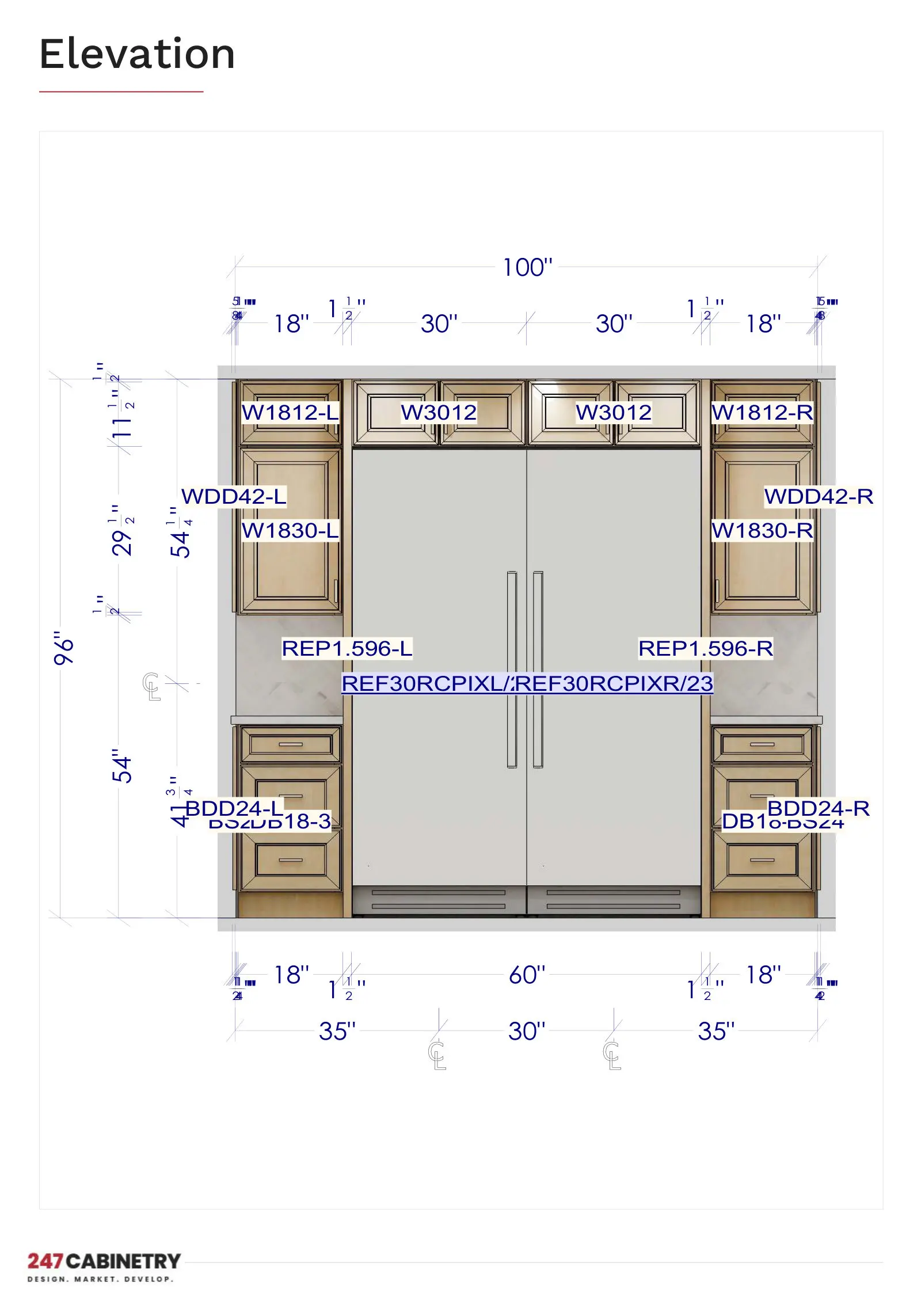

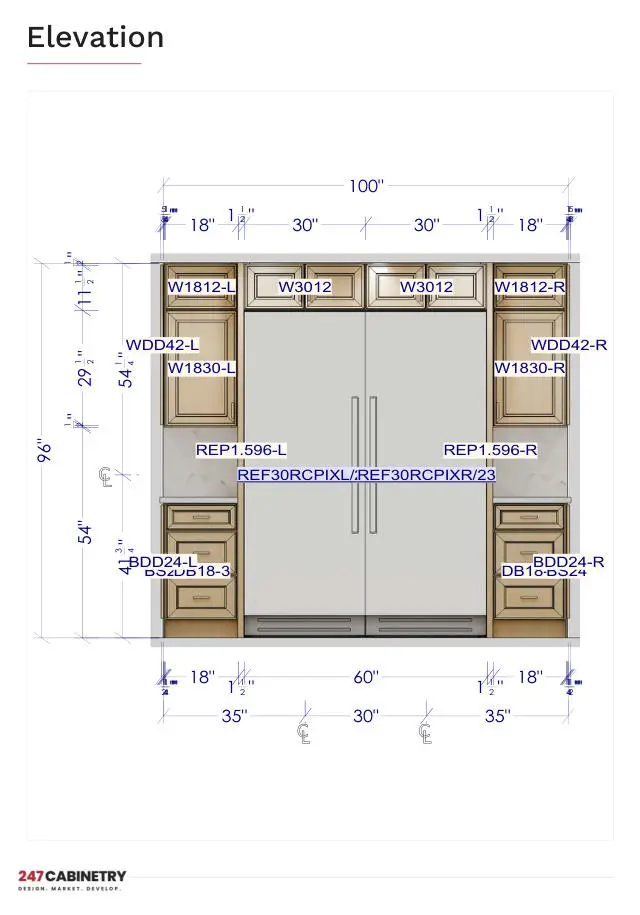

Refrigerator wall elevation: Column refrigerator wall with tall end panels, stacked wall cabinets and drawer bases.
Refrigerator wall elevationPage 8

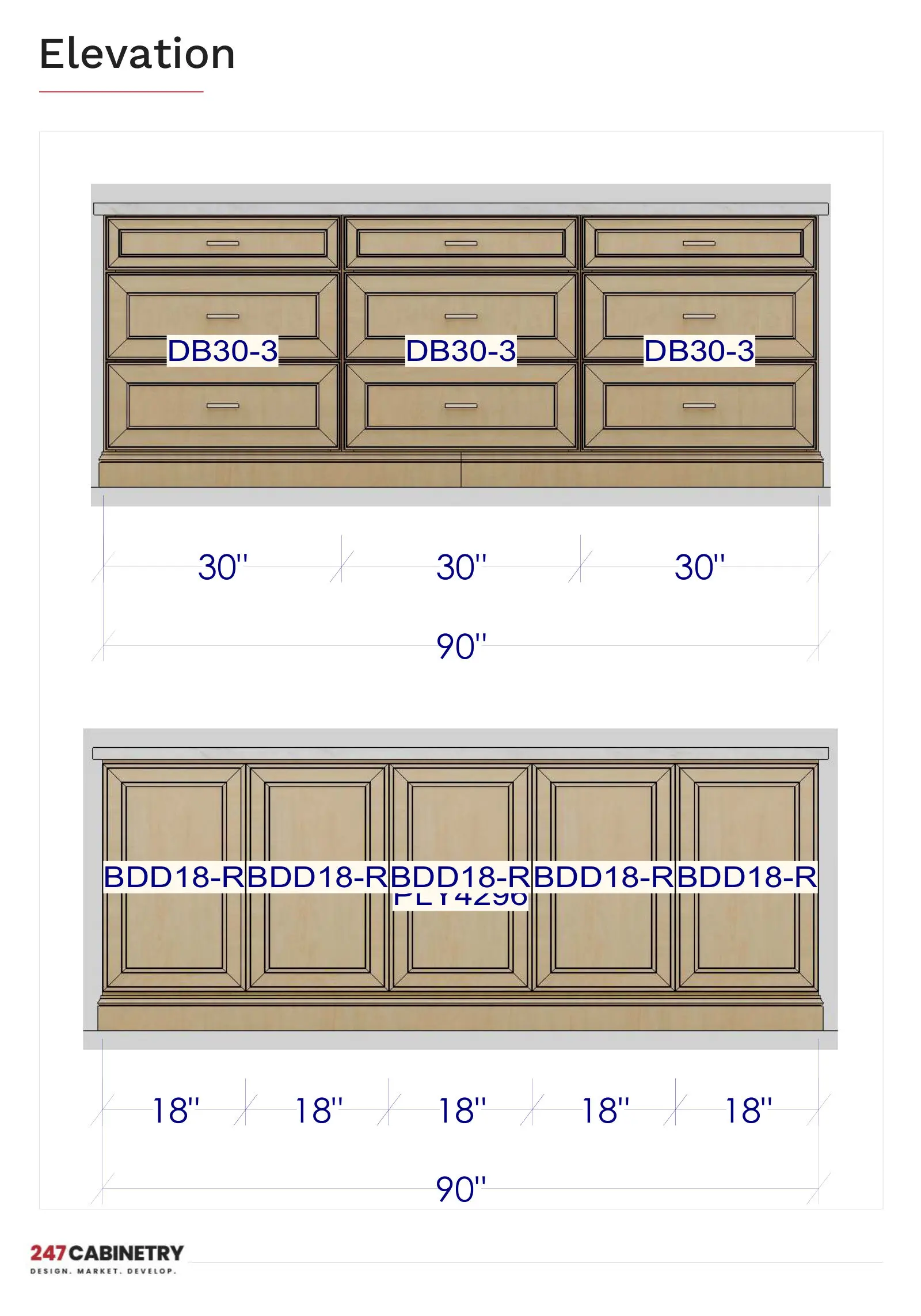

Island elevations: Both sides of the 90-inch island: drawer bases on the work side and paneled doors on the seating side.
Island elevationsPage 9

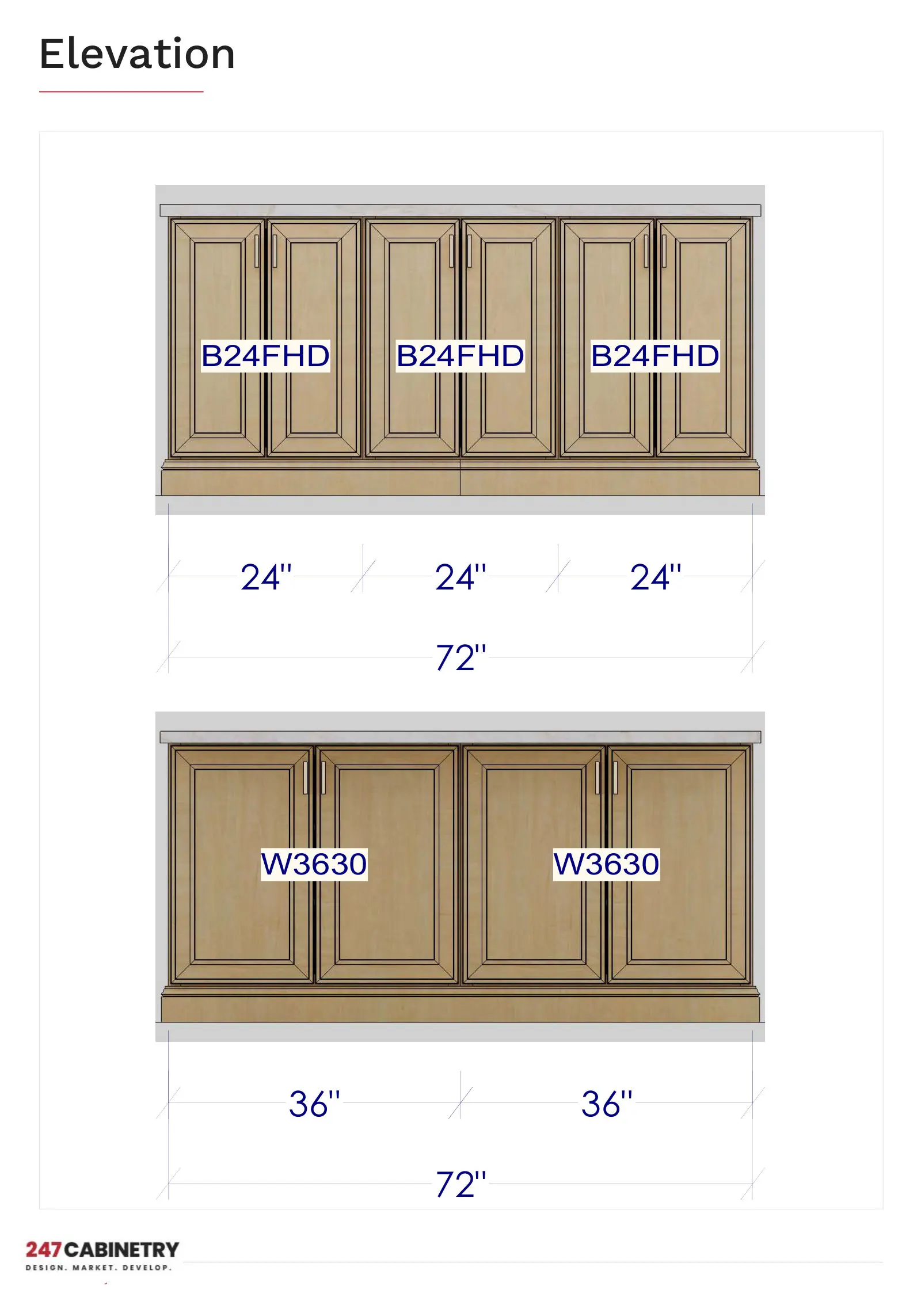

Additional wall elevation: 72-inch run with full-height base and wall cabinets.
Additional wall elevationPage 10

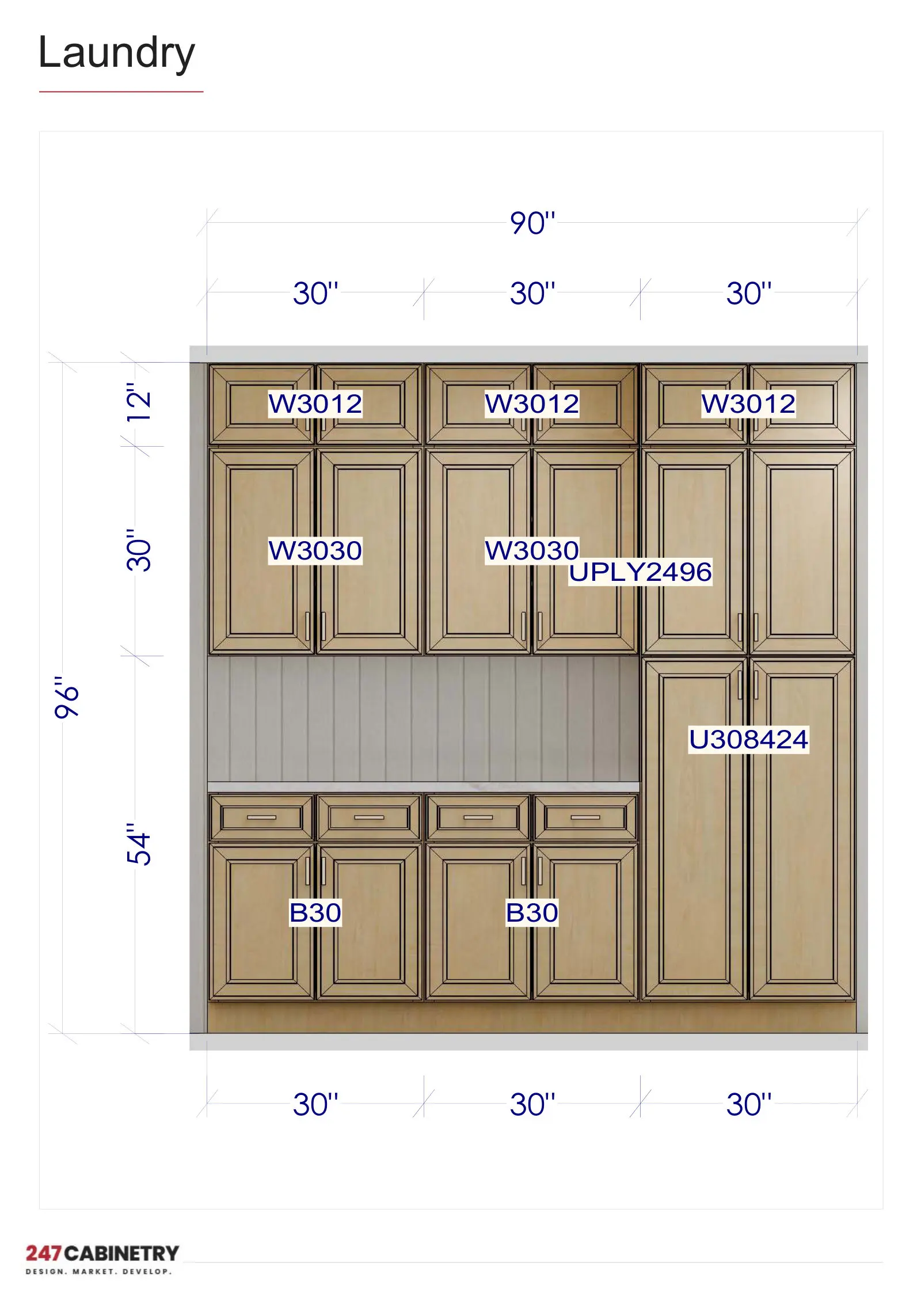

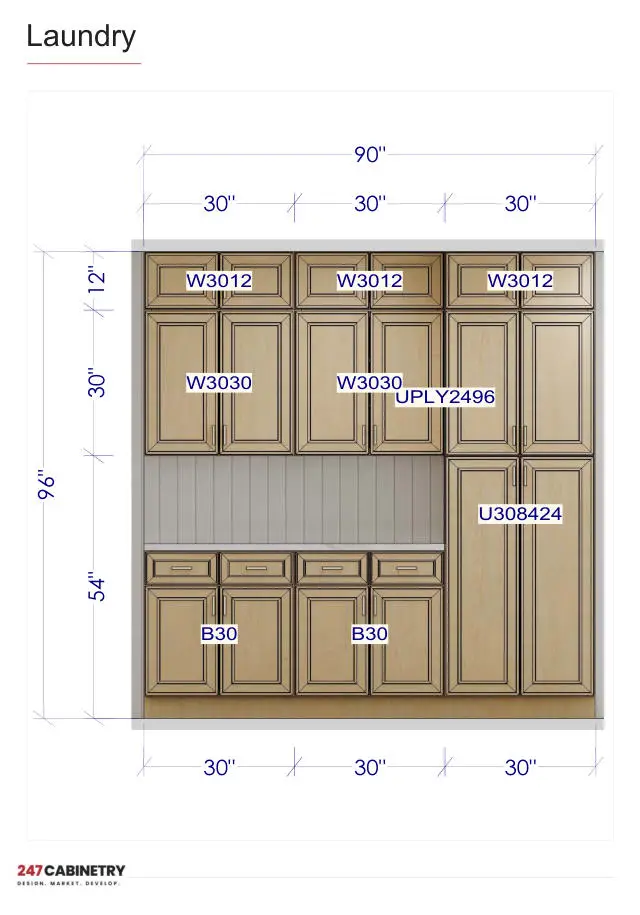

Laundry / pantry elevation: 90-inch laundry and pantry wall with utility tall cabinet and stacked uppers.
Laundry / pantry elevationPage 11

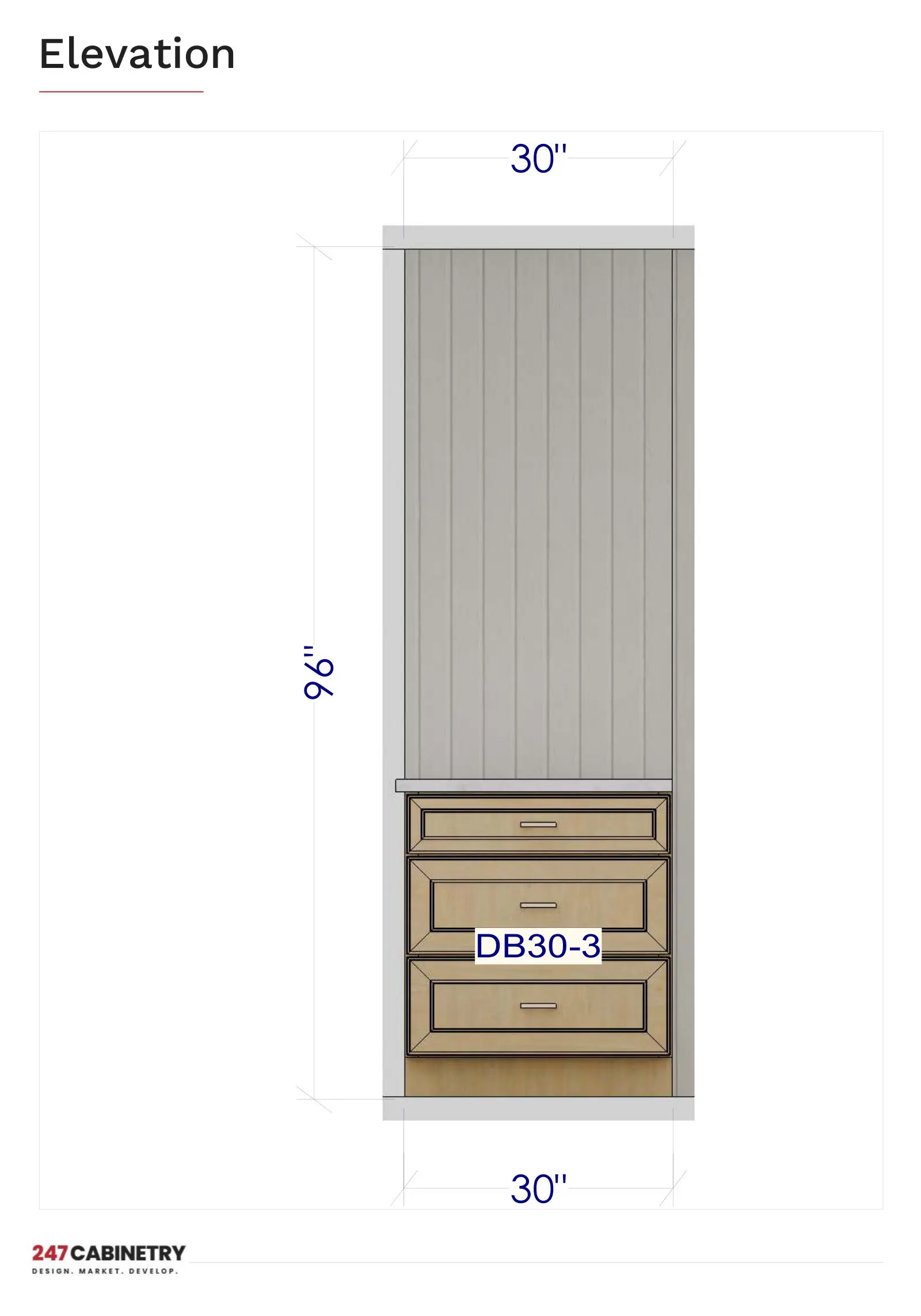

Drawer base elevation: 30-inch drawer base detail with countertop line and dimensions.
Drawer base elevationPage 12

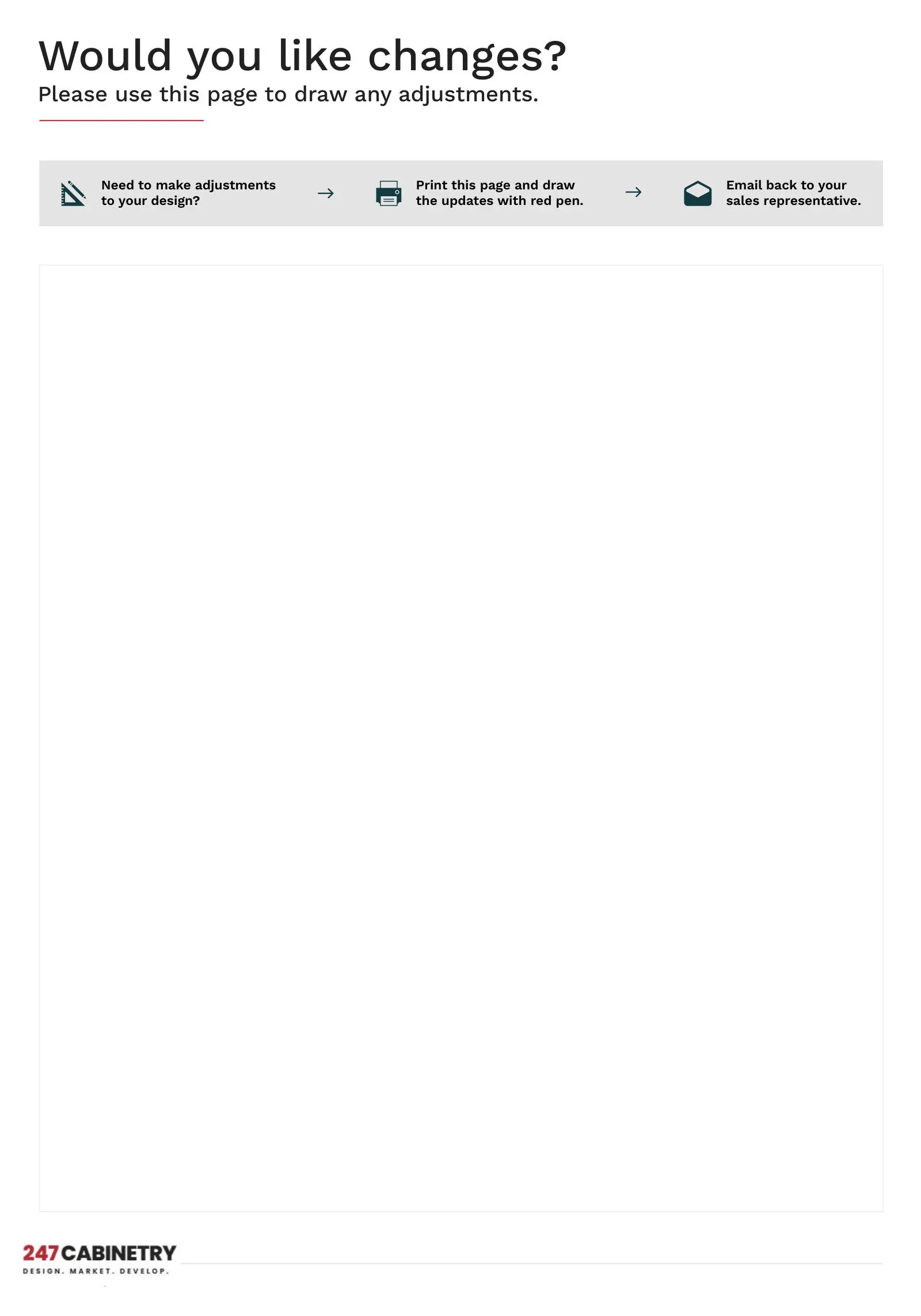

Revision markup page: A page for the homeowner or dealer to sketch changes before the revision request.
Revision markup pagePage 13
View sample PDF Download PDF (10.1 MB)
